Peptide Vial Packaging Box Design: Materials, Sizes & Cost Guide (2026)

The Ultimate Guide to Peptide Vial Packaging Box Design

Materials, Sizes, and Cost Optimization for Brand Owners

B2B Packaging Guide · 2026 Edition · 10-12 min read

A peptide vial packaging box is more than a container-it is a engineered system designed to protect delicate glass vials, communicate brand quality, and satisfy regulatory requirements across global markets. This guide covers everything you need to know about materials, sizing, structural design, and cost optimization for peptide vial boxes.

Whether you are launching a new peptide product or upgrading your current packaging, understanding the relationship between material choices, dimensional specifications, and cost drivers will help you make smarter procurement decisions and avoid expensive mistakes.

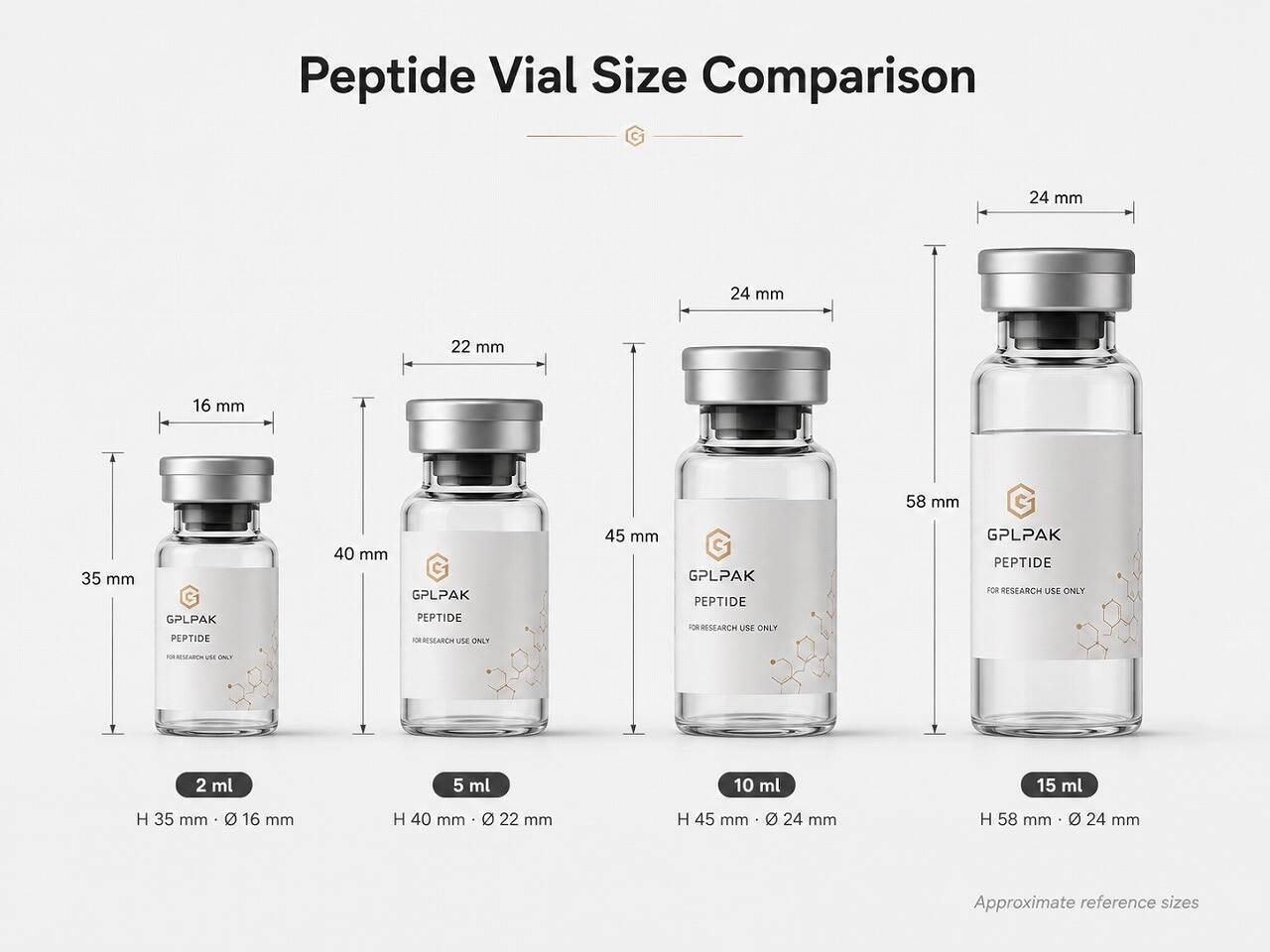

1. Standard Peptide Vial Sizes

Peptide vials come in standardized sizes. Knowing these dimensions is the first step in designing a box that fits perfectly. Below are the most common peptide vial sizes used by brands worldwide:

2. Box Dimension Calculation

Once you know your vial dimensions, calculating the correct box size requires adding clearance for the insert material and protective padding. The standard formula used by GPLPAK is:

For a 5ml vial (40mm height, 22mm diameter) with a 4mm EVA insert:

• Inner height: 40 + 5 (top) + 4 (bottom insert) = 49mm

• Inner width: 22 + 5 (left) + 5 (right) + 4 (insert wall) x 2 = 40mm

• Inner depth: single vial = 22 + 10 = 32mm / multi-vial = (22 + 10) x N

The outer box dimensions will add 2-3mm for the board thickness (rigid box) or 0.5-1mm (folding carton).

3. Material Selection Guide

The material you choose for your peptide vial box directly impacts protection, brand perception, and unit cost. Here is how the most common options compare:

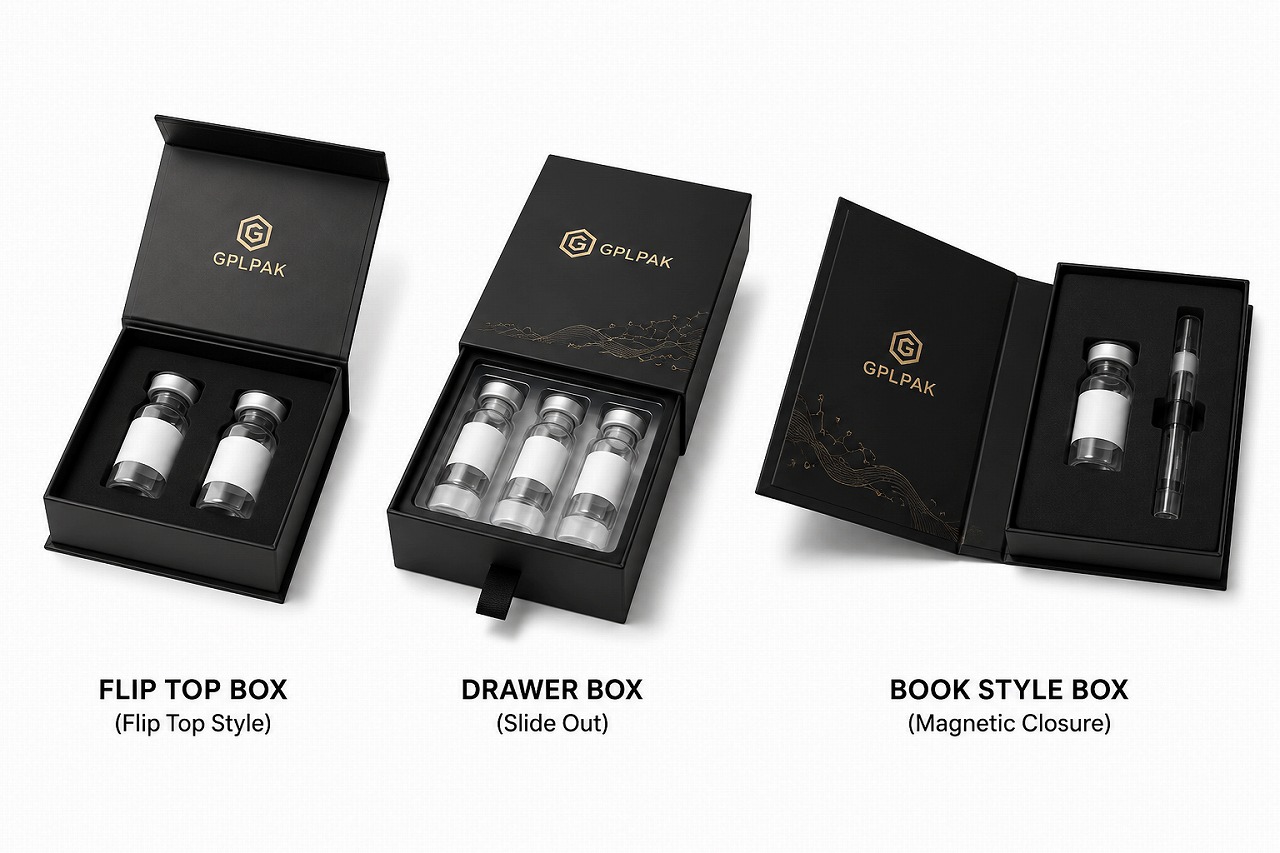

4. Peptide Vial Box Structure Options

Three box structures dominate the peptide packaging space. Each offers distinct advantages depending on your product format, price point, and brand positioning:

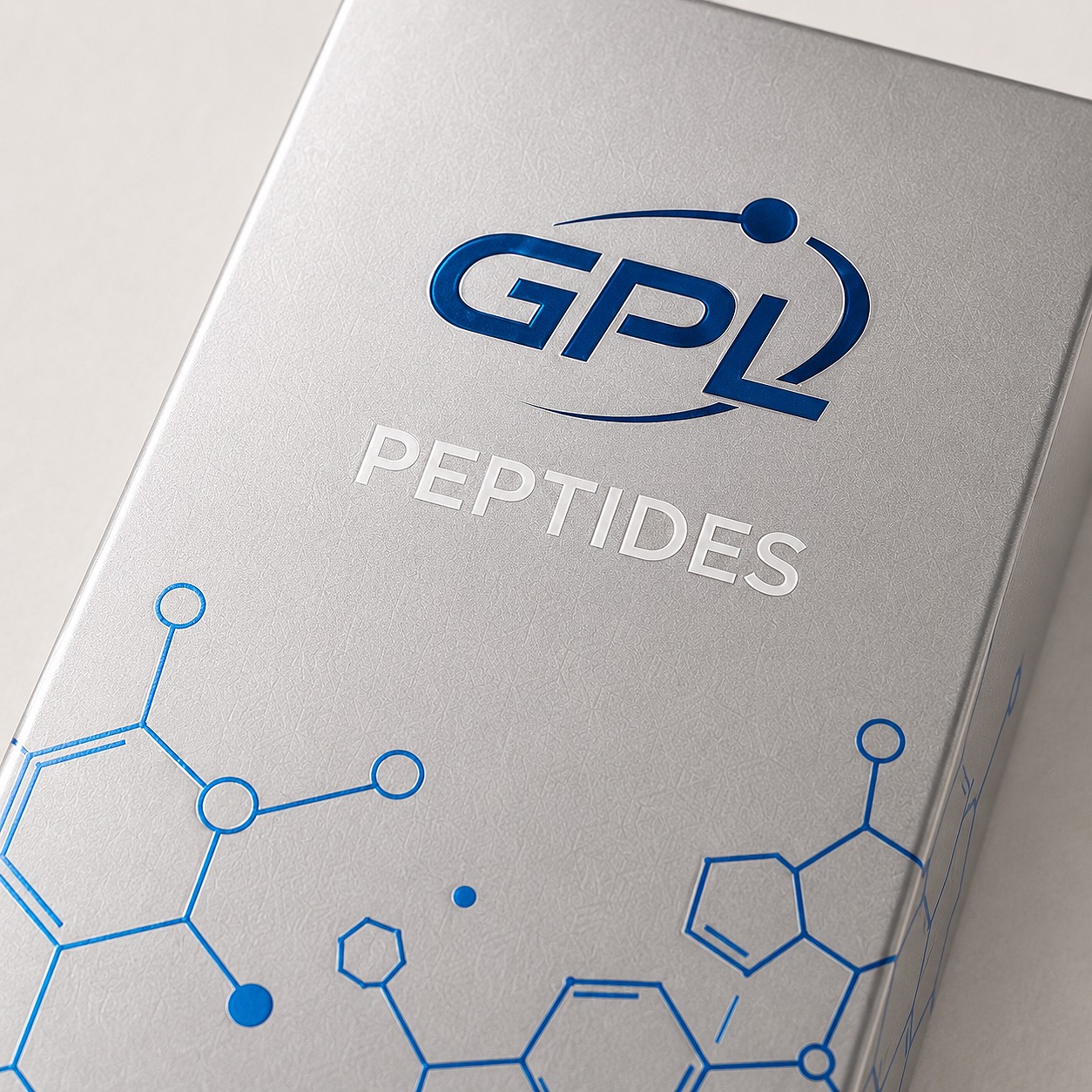

5. Printing and Surface Finishing

The surface finish of your peptide vial box is where brand identity meets tactile experience. Choosing the right combination of printing and finishing techniques can elevate perceived value significantly:

6. Peptide Vial Box Cost Breakdown

Understanding where your budget goes allows you to optimize without sacrificing quality. Below is a typical cost breakdown for a standard rigid magnetic flip-top peptide vial box (single 5ml vial, 1,000-unit order from China):

📌 Cost-saving tip: Ordering 3,000+ units typically reduces per-unit cost by 15-25% compared to 1,000-unit orders. Combining multiple vial size boxes in one production run also reduces tooling and setup costs.

7. Design Best Practices

Based on hundreds of peptide packaging projects delivered by GPLPAK, here are the most impactful design recommendations:

1. Always add 0.5-1mm clearance around the vial for easy insertion and removal. A too-tight fit causes frustration and potential glass damage.

2. Design the insert in layers - a top layer with vial cutouts and a bottom padding layer. This provides superior shock absorption compared to single-layer designs.

3. Include a label window or recessed area on the box exterior for product labels, batch numbers, and expiry dates without printing entire boxes for each batch.

4. Consider the unboxing motion - the most satisfying peptide box opens with the lid hinging away from the user, revealing all vials at once without any reaching.

5. Optimize box dimensions for shipping - a box that perfectly fits six vials may not fit standard shipping carton dimensions efficiently. Check carton utilization early.

8. Choosing a Peptide Vial Box Manufacturer

Not all packaging manufacturers have experience with peptide vial boxes. Here is a quick checklist to evaluate suppliers:

• Portfolio: Ask to see similar peptide vial box projects. Check edge precision, insert fit, and magnetic alignment.

• Insert capabilities: Does the supplier offer CNC-cut EVA, die-cut foam, or molded pulp inserts? CNC provides the tightest tolerances.

• Finishing range: Can they handle foil stamping, embossing, and spot UV in-house? In-house finishing reduces lead time and cost.

• MOQ flexibility: If you are testing a new product, look for suppliers offering low-MOQ sampling (500 pieces or fewer).

• Compliance support: Do they understand FDA, REACH, and FSC requirements for peptide packaging?
